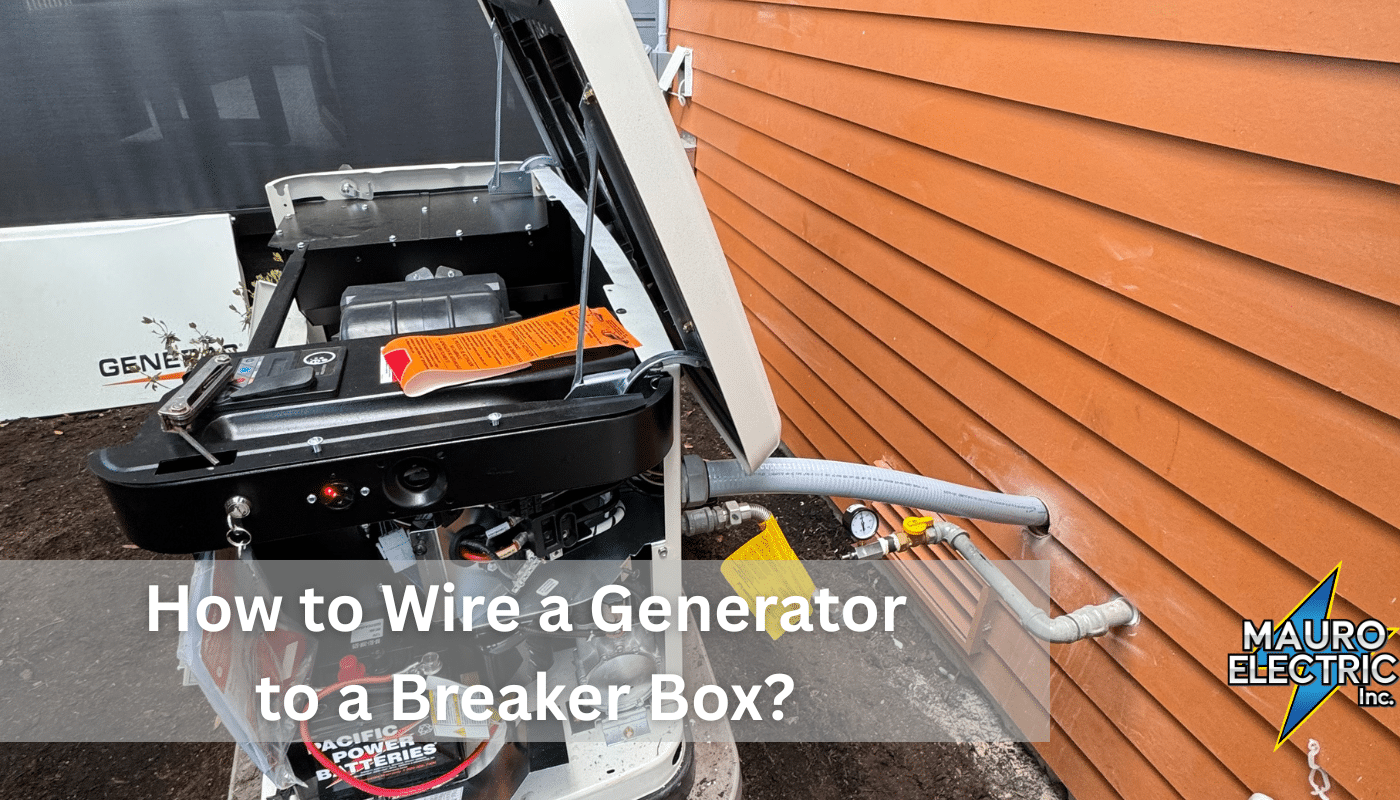

How to Wire a Generator to a Breaker Box?
When the power goes out in the Pacific Northwest, homeowners and businesses often turn to a backup generator to keep essential systems running. Knowing how to wire a generator to a breaker box is an important question for many property owners, but it is also one that requires professional expertise. At Mauro Electric Inc., we have been helping families and businesses in Bothell and surrounding areas since 1998. Our certified electricians know that while a generator provides reliable backup power, it must be connected to your electrical panel with precision to protect both people and property.
This guide will explain the process and outline the equipment used, while also helping you understand why hiring a licensed electrician is the safest choice.
Understanding the Basics
A generator produces electricity that needs to be routed safely into your home or business. Your electrical breaker box (also known as a breaker panel or service panel) distributes power to different circuits throughout the building. To connect a generator correctly, you need to ensure that it is properly wired to the panel using either a transfer switch or an interlock kit.
Both of these devices prevent electricity from flowing back into the utility lines, which is not only dangerous but also illegal. Backfeeding can cause serious injury to utility workers or damage to your electrical system. Proper installation keeps the system safe and code compliant.
Transfer Switch vs. Interlock Kit
One of the first steps in planning a generator installation is deciding between a transfer switch and an interlock kit.
- Transfer Switch: This device is installed next to your panel and automatically or manually switches the load from utility power to generator power. An automatic transfer switch is common for standby systems like a Generac, while a manual transfer switch is often used for portable generators.
- Interlock Kit: This device is installed on the panel cover and mechanically prevents the main breaker from being on at the same time as the generator breaker. An interlock kit is a cost-effective solution but requires proper installation to ensure compliance with electrical codes.
At Mauro Electric Inc., we install both systems depending on the customer’s needs, but we always recommend solutions that maximize safety and convenience.
The Wiring Process in Detail
While every installation is unique, the general steps to wire a generator to a breaker box include:
- Preparation and Safety
Power must be turned off at the main service panel before any work begins. The main breaker ensures that no electricity is flowing from the utility while the generator wiring is connected. - Installing the Generator Breaker
A dedicated generator breaker is installed in the panel. This breaker will control the flow of electricity from the generator to the home circuits. - Running the Wire
Heavy duty cable, often stranded wire, is run from the generator inlet to the breaker panel. This cable includes hot wires, a neutral, and a ground. The hot wires connect to the generator breaker, the neutral connects to the neutral bar, and the ground connects to the ground bar inside the panel. In some cases, a separate ground rod and ground bond are required to ensure safe operation. - Installing the Interlock or Transfer Switch
Depending on the system, either the interlock is mounted to the panel or the transfer switch is wired in line. Both devices ensure that power from the generator and power from the utility cannot be active at the same time. - Testing the System
After installation, the electrician tests the system by simulating a power outage. The generator is connected, circuits are switched over, and each load is verified. Lights, outlets, and appliances are checked to ensure power flows correctly and safely.
Key Safety Considerations
- Grounding: Every generator system must be properly grounded. A secure connection to the ground bar or a dedicated ground rod ensures safe dissipation of electricity.
- Neutral Connections: Proper bonding and neutral separation are essential. Incorrect wiring can cause electrical shock or damage to appliances.
- Compliance: Only licensed electricians should connect a generator to a service panel. Improper work can void insurance policies or lead to failed inspections.
- Sizing the Generator: Always use a generator sized for your electrical load. Oversizing or undersizing can create hazards.
Why Hire a Professional?
While online tutorials may suggest that a homeowner can connect a generator to a breaker box, the reality is that this project requires advanced knowledge of electrical codes, grounding, and safe wiring practices. A mistake in the process can result in fire, equipment damage, or severe injury.
At Mauro Electric Inc., we have over 25 years of experience wiring backup power systems throughout Snohomish, King, and Island counties. We specialize in Generac auto standby generator installation, service upgrades, and panel repair. Our team is licensed, bonded, insured, and committed to keeping your home or business safe.
Final Thoughts
Understanding how to wire a generator to a breaker box is important, but performing the work correctly is even more critical. With the proper use of transfer switches, interlock kits, grounding, and safe wiring practices, your generator can provide reliable power during outages without putting your property or family at risk.
If you are considering installing or upgrading a generator system in Bothell or the greater Seattle area, trust the experts at Mauro Electric Inc. We will make sure your system is installed safely, efficiently, and in compliance with local electrical codes.
